Interconnection Technology Solutions

Alinduflex

An innovative new concept in cabling
Our flexible lightweight aluminium conductors outperform equivalent H07RN-F with an extended temperature range, increased stability and reliable connectivity.
  • Outperforms equivalent CSA in H07RN-F
  • Flexible Aluminium conductor insulated by quality rubber compound
  • Extended temperature range and stability
  • Approx. 60% weight reduction
  • Outstanding handling and flexibility
  • Excellent value for money
  • Lower freight costs
  • Independent from base metal price fluctuations (reduced theft)
  • Oil resistant to gear and hydraulic oils

  • Need a 450/750v cable that outperforms H07RN-F?

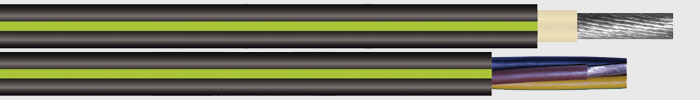

    Alinduflex 6511 is a highly flexible, insulated Aluminium cable with an extended temperature range and reliable connectivity. The conductors are sheathed in a high grade rubber compound which offers a higher ozone, UV and temperature rating and greater oil resistance. Single or multi conductor types are available to suit your application.


    Range 6511 450/750v

    Alinduflex provides better performance, lowers freight costs and it is independent from metal price fluctuations (which makes it less attractive to thieves).

  • Improved material properties within the cable makeup
  • Oil Resistant to gear and hydraulic oils
  • Ozone Resistant to EN60811-403
  • UV Resistant to UL1581
  • Range: 6511
  • Voltage rating: 450/750v
  • Fixed operating temp: -40°C - + 90°C
  • Moving operating temp: -30°C - + 90°C

  • Need a higher voltage in single-core capacity cable that outperforms H07RN-F? (600/1000v)

    Alinduflex 6512 is a highly flexible single-core Aluminium cable with increased current carrying capacity, stability and performance at higher temperatures. The highly flexible cable composition allows a maximum temperature rating of 90 degrees at the conductor resulting in no loss of connectivity compared to the equivalent copper cross-sections.


    Range 6512 600/1000v

    Our innovative single-core Alinduflex cable provides the perfect solution where a higher current carrying capacity is required. It is suitable for a broad range of environments and applications.

    It provides better performance, lowers freight costs and it is independent from metal price fluctuations (which makes it less attractive to thieves).

  • Improved material properties within the cable makeup
  • Oil Resistant to gear and hydraulic oils
  • Ozone Resistant to EN60811-403
  • UV Resistant to UL1581
  • Range: 6512
  • Voltage rating: 600/1000v
  • Fixed operating temp:-40°C - + 90°C
  • Moving operating temp: -30°C - + 90°C

  • AP Technology is the sole UK distributor for Alinduflex Cables. For more information please download the Alinduflex range brochure or get in touch.
